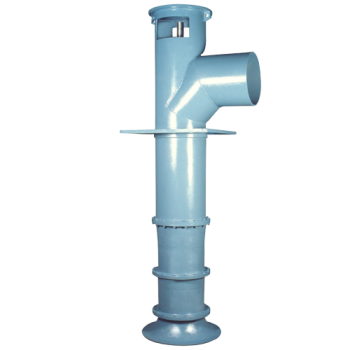

DVAF SERIES VERTICAL AXIAL FLOW PUMP
DVAF Series Vertical Axial Flow Pump is a high-capacity, low-head pump specifically designed for handling large volumes of water and other low-viscosity fluids. With a vertically oriented design and axial impeller flow, it delivers maximum efficiency for continuous, heavy-duty operation in demanding applications.
Operating Data
| Capacity | Up to 2200 M³/hr |
|---|---|
| Head | Up to 150 Mtr |
| Discharge Size | 25 mm to 300 mm |
| Temperature | Up to 200°C |
| Speed | Up to 3500 rpm |
| Pressure | Up to 15 Kg/Cm² |
| M.O.C. | CI, CS, SS304, SS304L, SS316, SS316L, Alloy-20, CD4MCuN, Alloy-20, Hastelloy, etc. |
Applications:
- Drainage
- Flood Control
- Irrigation
- Waste Treatment Plants
- Condenser Cooling
- Construction Dewatering
- Fish Farming
- Raw Water Intakes
Features:
- Robust construction with high-quality materials for long-lasting performance
- Compact design for easy installation and space-saving
- High-efficiency hydraulic design for optimal energy consumption
- Back pull-out design for convenient maintenance and reduced downtime
Optional Accessories:
- Baseplate and coupling
- Control panel and electrical wiring
- Vibration dampeners
- Pressure gauge and flow meter
- Suction and discharge fittings
