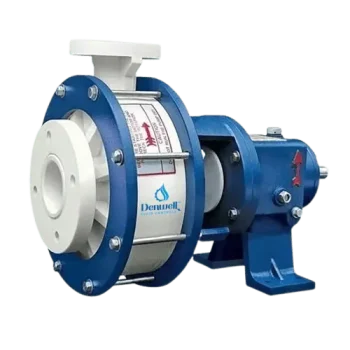

PPC SERIES ANTI-CORROSIVE POLYPROPYLENE/PVDF CHEMICAL PROCESS PUMPS
The Horizontal End Suction Centrifugal Pump ISO 2858/5199 is a high-performance pump designed for various industrial applications. It is built according to the ISO 2858/5199 standard, ensuring exceptional reliability, efficiency, and ease of maintenance.
Operating Data
| Capacity | Up to 50 M³/hr |
|---|---|
| Head | Up to 45 Mtr |
| Discharge Size | 25 mm to 50 mm |
| Temperature | Up to 80°C |
| Speed | Up to 3500 rpm |
| Pressure | Up to 4.5 Kg/Cm² |
| M.O.C. | Polypropylene Copolymer (PPC), PVDF |
Applications:
- Chemical processing and transfer
- Water treatment and purification
- Pharmaceutical and biotech industries
- Food and beverage processing
- Pulp and paper industries
- Electro-Plating & Descaling
- Mining and wastewater treatment
- Scrubbing of Corrosive Gases (Cl₂, Br₂, F₂, SO₂, SO₃, CO₂, NH₃ etc.)
Key Features:
- Excellent Chemical Resistance with PPC & PVDF materials
- Non-metallic wetted parts for complete corrosion protection
- Robust & compact design ensures long service life
- Leak-free operation with mechanical or magnetic seal options
- Ideal for chemical processing, plating, scrubbing & ETP plants
Optional Accessories:
- Baseplate and coupling
- Control panel and electrical wiring
- Vibration dampeners
- Pressure gauge and flow meter
- Suction and discharge fittings
Why Choose Our
PPC SERIES ANTI-CORROSIVE POLYPROPYLENE/PVDF CHEMICAL PROCESS PUMPS
We handle everything for you!
"We at The Denwell take great pride in our exceptional pump solutions and comprehensive services."
